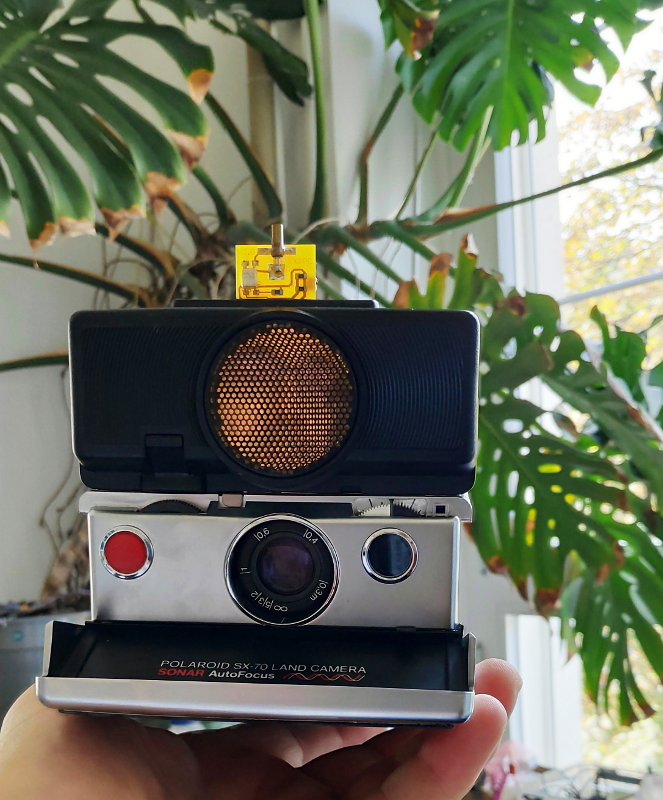

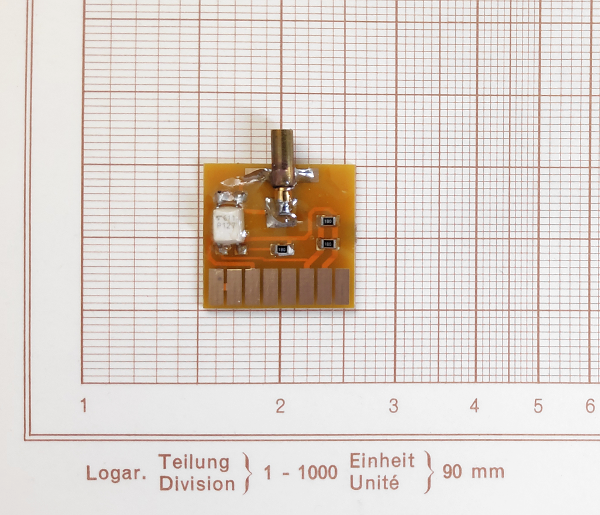

Flash adapters for the Polaroid SX-70.

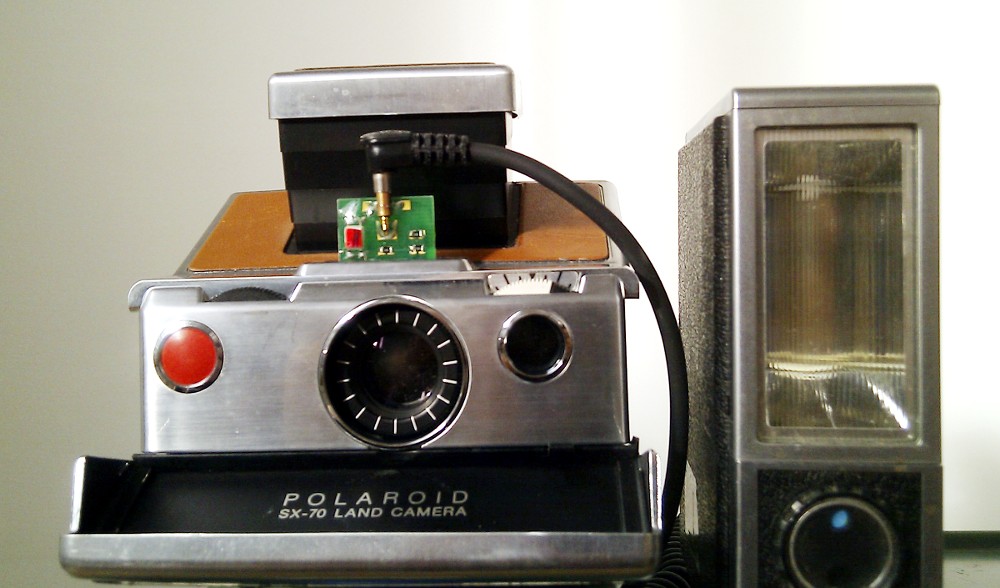

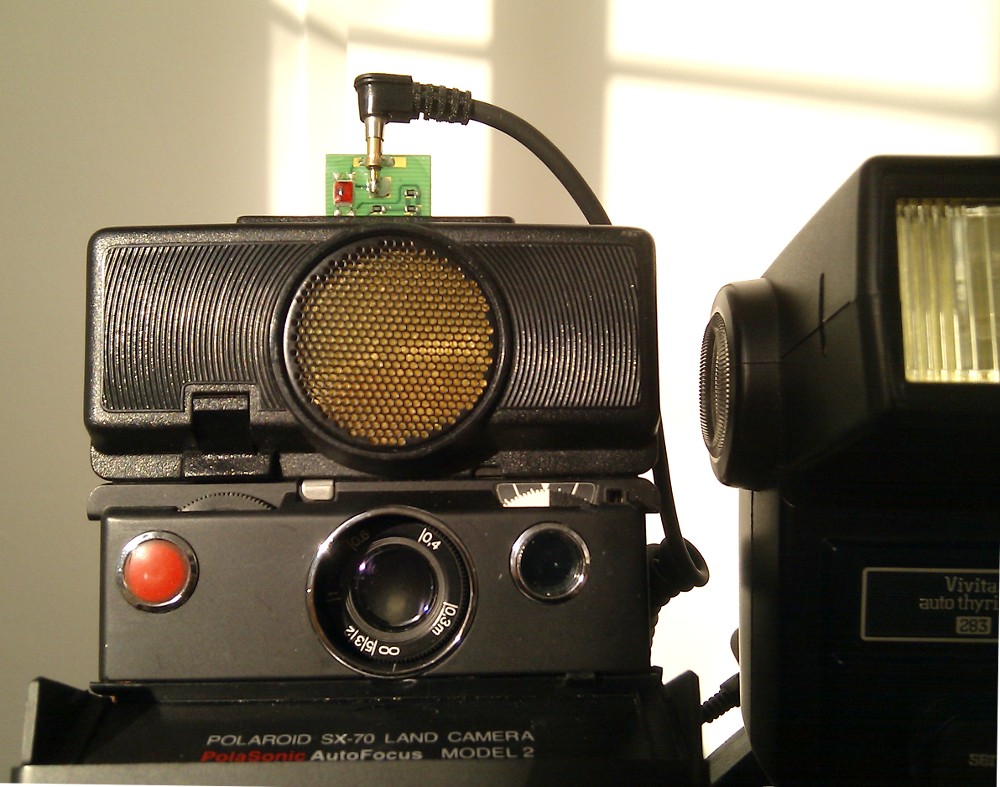

The adapter plugs into the flashbar slot and provides a x-sync standard pc socket where you can connect any electronic flash or radio remote like the Pocket Wizards.
The sync voltage can be 3 - 300 V so new and old flashes work reliably and safely.
The flash side is completely isolated from the camera side.

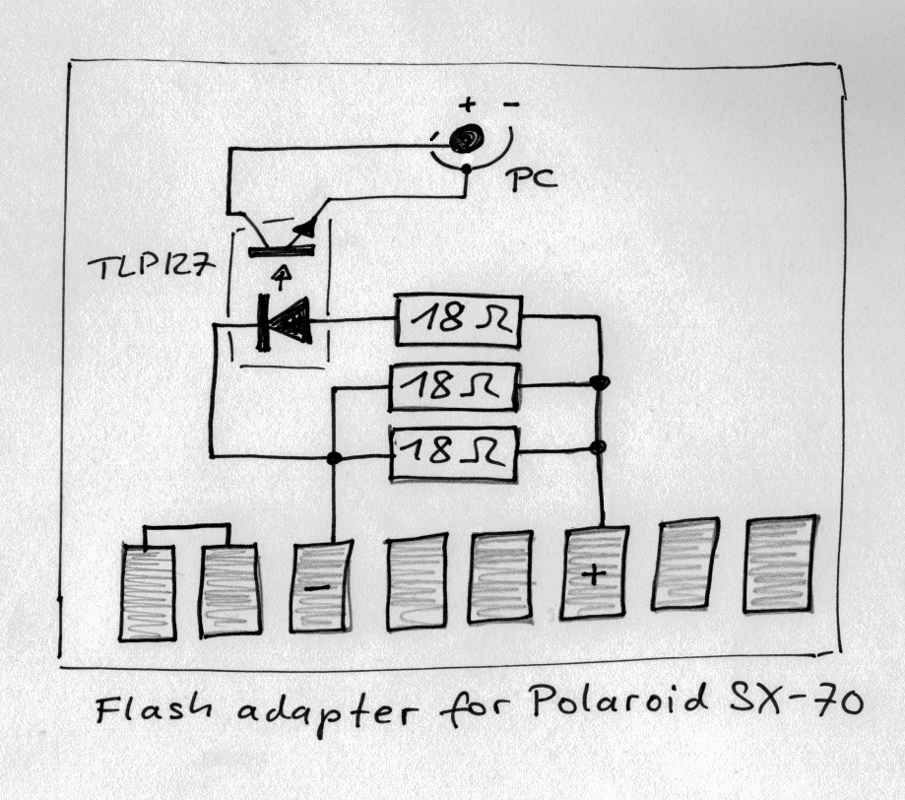

Circuit

The resistors mimic the presence of a good flashbulb at position 1.
The ignition pulse fires the optocoupler.

Build one yourself

The flash adapter started as a DIY instructions page when the Worldwide Web was still in its infancy.
After many requests from people who didn't have the time or soldering skills to build theirt own adapter I started building and selling them.
I still support anyone who builds a flash adapter and needs advice.

I recommend that you use a spent flashbar and use its contact strip and enclosure.
You find pc sockets in old, broken cameras.
All other components are standard parts, available at electronics suppliers.

This circuit would also work to substitute Flash600 and Topflash/Flipflash flashbars and (Non-magic) flashcubes.
I have built an adapter for Flash600 cameras by using the contact strip of a 600Flashbar.

Buy one of mine

Price for one adapter is 50 US$ or 45 Euros shipped worldwide.

I know this is a lot of money for such a small device.
I could probably have them produced in China for one dollar and sell them for five if I ordered 20'000 pieces.

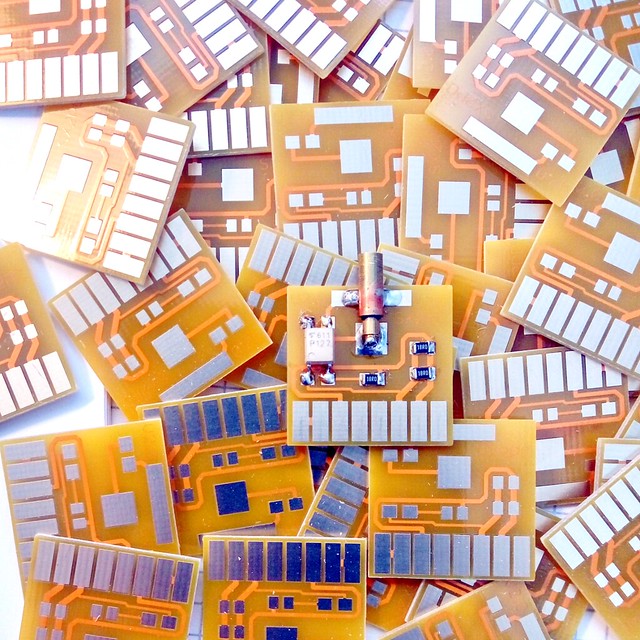

However the market is not that big so I assemble each one by hand, even machine my own pc sockets.
I spend about 1 hour on one adapter, not counting development and user support.

You can try the adapter and return it if you have any reason to do so.

Polaroids from the Toronto International Film Festival by Jay L. Clendenin for the LA Times using the flash adapter.

Photo by Frank Palatini

Some more examples of photos shot with the adapter.
